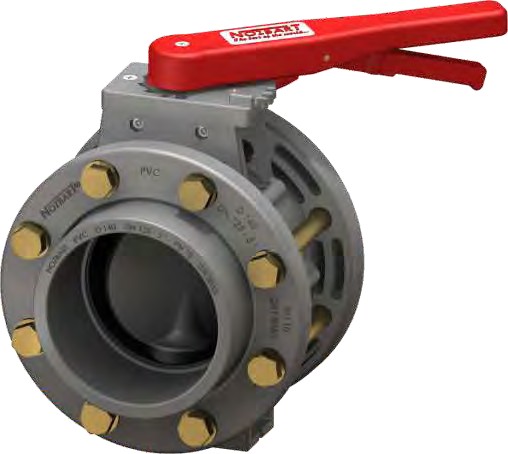

Kelebek Vanalar
METRİK-METRIC TSE / ISO / DIN | IMPERIAL BS / ANSI /ASTM | AUSTRALIA/ NEW ZEALAND AS / NZS | ||||||
D | KOD CODE | D | KOD CODE | D | KOD CODE | DN | AMBALAJ PACKAGE | |
mm | INCH | mm | mm | mm | ||||
63 | DİM-064 | 2'' | 60.3 | ADİM-064 | 60.3 | ADİM-064 | 50 | 1AD. - UNIT |
75 | DİM-076 | 2 1/2'' | 75.3 | ADİM-076 | 75.3 | ADİM-076 | 65 | 1AD. - UNIT |
90 | DİM-091 | 3'' | 88.9 | ADİM-091 | 88.9 | ADİM-091 | 80 | 1AD. - UNIT |
110 | DİM-111 | 4'' | 114.3 | ADİM-111 | 114.3 | ADİM-111 | 100 | 1AD. - UNIT |
125 | DİM-126 | - | - | - | - | - | 110 | 1AD. - UNIT |
140 | DİM-141 | 5'' | 140.3 | ADİM-141 | 140.0 | DİM-141 | 125 | 1AD. - UNIT |
160 | DİM-161 | 6'' | 168.3 | ADİM-161 | 160.0 | DİM-161 | 150 | 1AD. - UNIT |
200 | DİM-201 | 7'' | 219.1 | ADİM-201 | 200.0 | DİM-201 | 175 | 1AD. - UNIT |
225 | DİM-226 | 8'' | 219.1 | ADİM-226 | 225.0 | DİM-226 | 200 | 1AD. - UNIT |
250 | DİM-251 | 9'' | 244.5 | ADİM-251 | 250.0 | DİM-251 | 225 | 1AD. - UNIT |
280 | DİM-281 | 10'' | 273.0 | ADİM-281 | 280.0 | DİM-281 | 250 | 1AD. - UNIT |
315 | DİM-316 | 12'' | 323.9 | ADİM-316 | 315.0 | DİM-316 | 300 | 1AD. - UNIT |

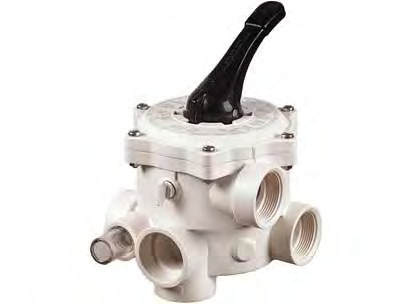

ALTIYOLLU VANA
MALZEME CİNSİ DESCRIPTION | KOD CODE |
1½”Altı yolluvana 1½”Multiportvalve | ALT-050 |
1½”Altıyolluvana(Dişli) 1½” Multi port valve (Threaded) | ALTD-050 |
1½” Üsten montajlı altı yollu vana 1½” Topmount multiport valve | ALTÜ-050 |
2”Altıyolluvana 2”Multiportvalve | ALT-063 |
2”Altıyolluvana(Dişli) 2” Multi port valve (Threaded) | ALTD-063 |
2 ½” Altı yollu vana (Dişli) 2½”Multiportvalve(Threaded) | ALTD-075 |
3”Altıyolluvana 3”Multiportvalve | ALT-090 |
4” Altı yollu vana (Dişli) 4”Multiportvalve(Threaded) | ALTD-110 |
